Architecture Decision Records (ADR)

Plugin details
Created by	Phil Kuang
Category	Discovery
Source	GitHub
Type	Open-source plugin

Configuration

Application configuration YAML

No action required

• This is a frontend plugin without any authentication configured hence no configuration required.

Secrets

• No secrets are required for this plugin as there are no authentication configured.

Layout

No action required

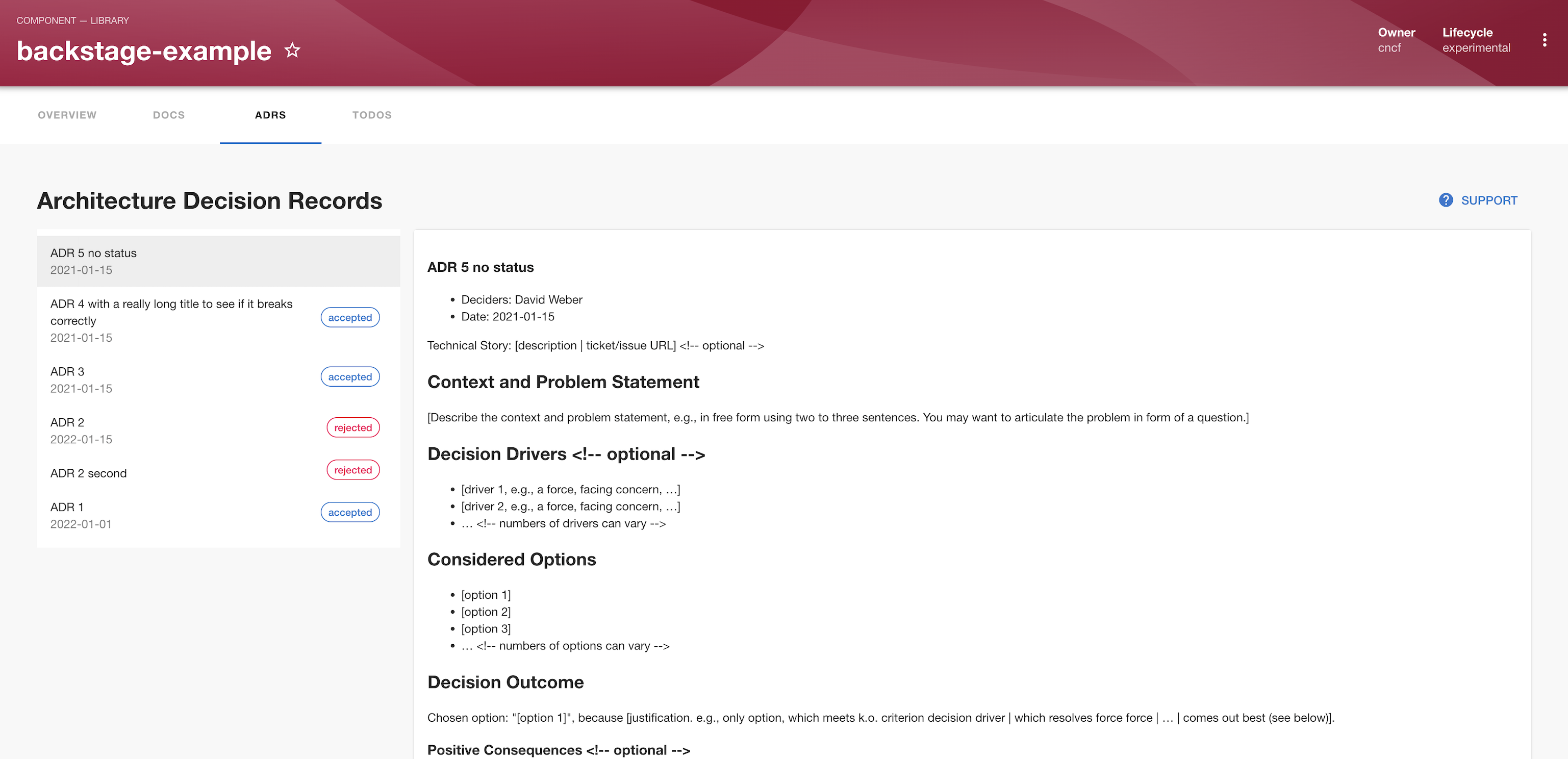

It exposes the EntityAdrContent and this is how you configure it:

    - name: EntityAdrContent
      path: /adrs
      title: ADRs
      contents:
        - component: EntitySwitch
          specs:
            cases:
              - if: isAdrAvailable
                content:
                  component: EntityAdrContent

Annotations

To configure the plugin for a service in the software catalog, set one of the following annotations in its catalog-info.yaml definition file.

The following configuration is recommended:

metadata:
  annotations:
    backstage.io/adr-location: <RELATIVE_PATH_TO_ADR_FILES_DIR>

The value for backstage.io/adr-location should be a path relative to your catalog-info.yaml file or a absolute URL to the directory which contains your ADR markdown files.

For example, if you have the following directory structure, you would set backstage.io/adr-location: docs/adrs:

repo-root/
  README.md
  src/
  catalog-info.yaml
  docs/
    adrs/
      0001-use-adrs.md
      0002-use-cloud.md

Custom ADR formats

By default, this plugin will parse ADRs according to the format specified by the Markdown Architecture Decision Record (MADR) v2.x template or the Markdown Any Decision Record (MADR) 3.x template.

Support

The plugin is owned by the Backstage Community and managed in this repository as an open-source project. Create a GitHub issue to report bugs or suggest new features for the plugin.
